Call for Pricing

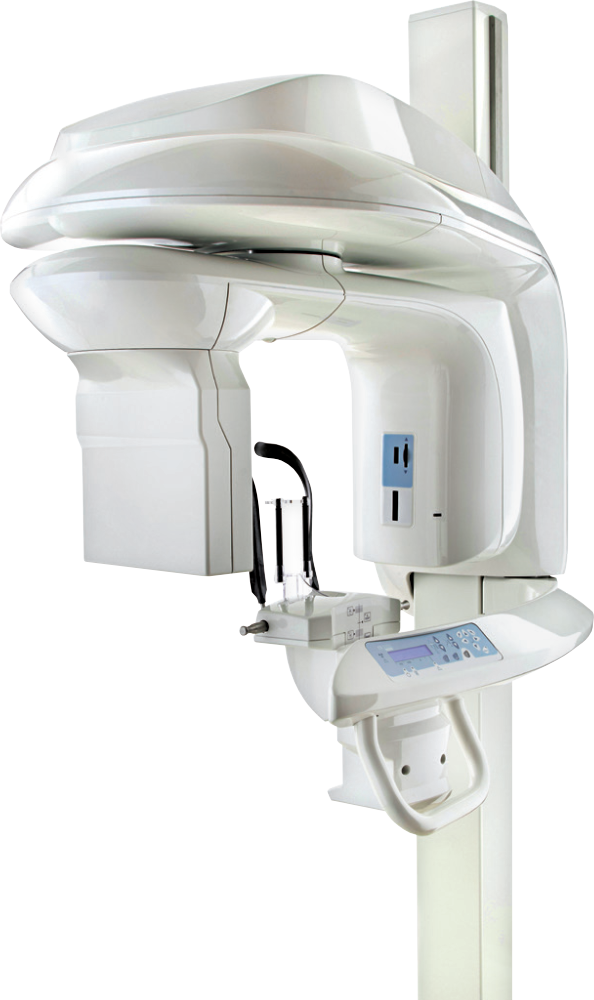

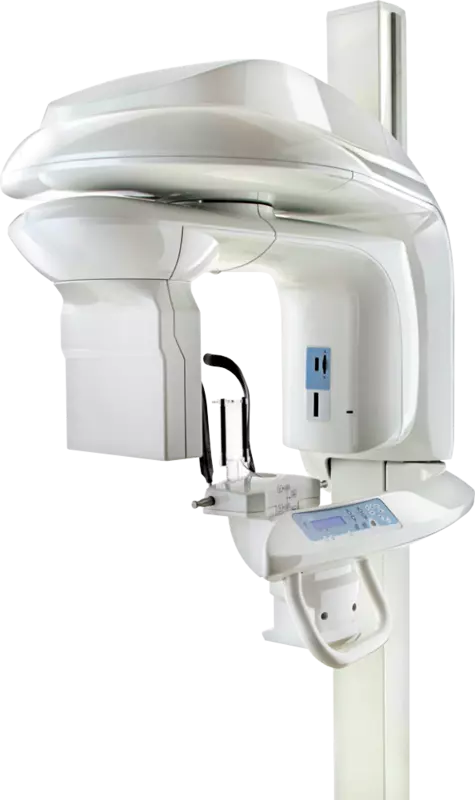

For fast, accurate diagnosis and a point-of-care CT system that is easy to implement and afford, choose the CS 9300. Featuring a range of fields of view and resolutions, the unit is ideal for visualizing sinus and temporal bone structures – and all with a fraction of the radiation dose of conventional multi-detector CT exams. Brought to you by Carestream, a medical imaging leader for over a century.
Customize
The CS 9300 system for point-of-care CT imaging enables faster, more accurate diagnosis and treatment. Your patients will welcome the convenience of immediate imaging, faster diagnosis and the ability to begin the correct treatment more quickly.
This advanced system delivers high quality images at a fraction of the radiation dose of conventional multi-detector CT systems – an especially critical factor for pediatrics and patients requiring multiple CTs. Patients will also appreciate the open, modern, upright design, which minimizes the potential of claustrophobia.
Technical Specifications
3D CBCT Modality
- Sensor type: TFT
- Scan mode: Continuous and pulse
- Scanning time: 12-28 seconds (+/- 10%)
- Voxel size (μm): 90 to 500
- Field of view (cm): 5x5, 8x8, 10x5, 10x10, 17x6, 17x11, 17x13.5
- Reconstruction time: Less than 2 minutes based on the recommended computer system configuration requirements
X-Ray Generator and Other Specifications
- Tube voltage: 60 - 90 kV
- Tube current 2 - 15 mA
- Frequency: 140 kHz
- Tube focal spot: 0.7 mm (IEC 60336)
- Input voltage (AC): 110/110/130V – 50/60Hz
- Weight: 160 kg (353 lb.)
