Call for Pricing

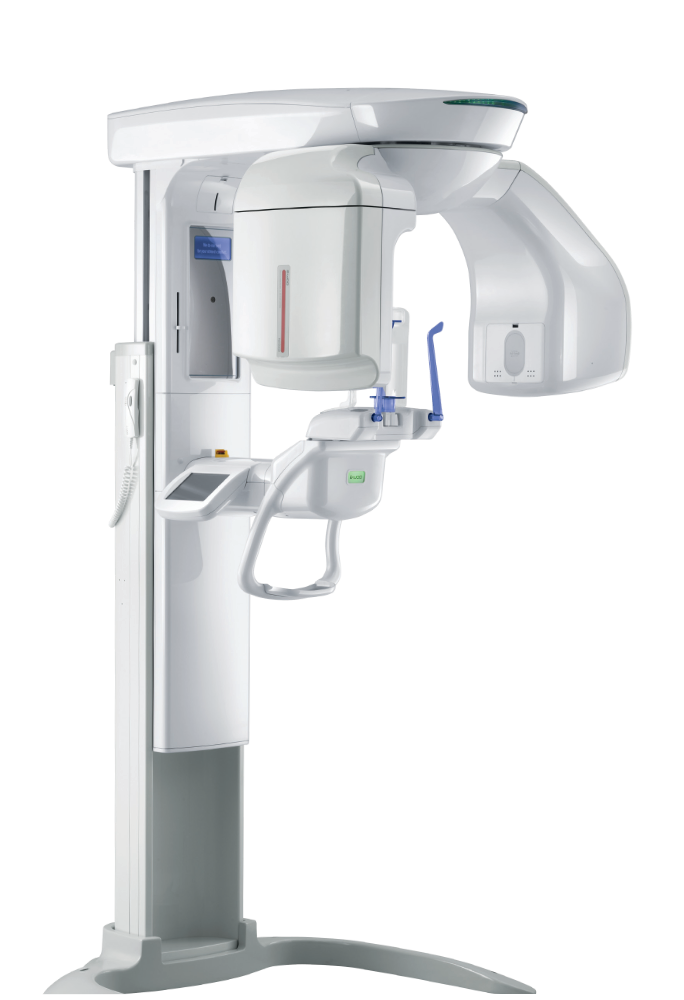

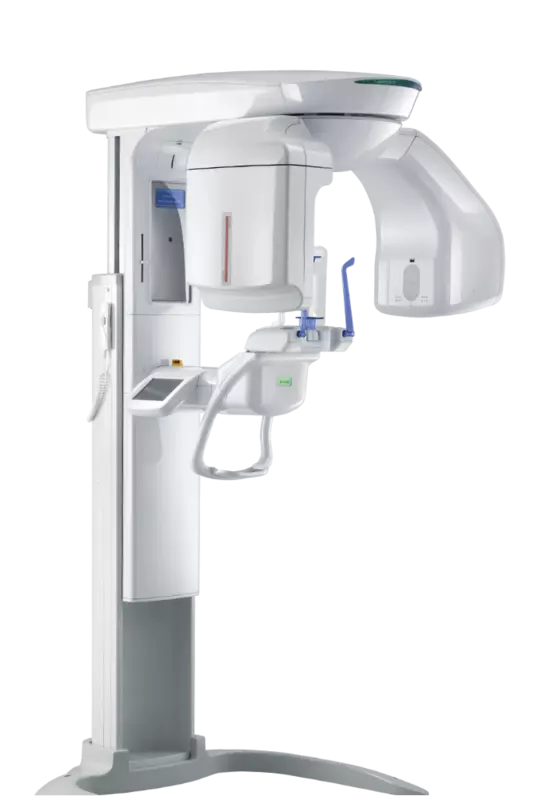

PaX-Duo3D PLUS offers the most efficient 2-in-1 solution for dental specialists by providing high-quality panoramic and 3D images at an affordable price. With the auto-switching system’s panoramic and CBCT sensors, users can easily toggle the scan, multiplying imaging options and supplying the information needed to carry out a full diagnosis. The upgraded PLUS model is the new standard of CBCT.
Customize
2-IN-1 SYSTEM
The Pax-Duo3D PLUS offers 2-in-1 flexibility with two embedded auto-switching sensors that rotate automatically between true Panoramic and Cone Beam CT modes.
SUPERIOR IMAGE QUALITY
Featuring a 0.12 mm – 0.4 mm voxel size, the PaX-Duo3D PLUS produces Ultra High Definition radiographic images in brilliant greyscale. Metal Artifact Remove (MAR) technology minimizes scatter. Auto Focus Technology compensates incorrect proper patient positioning, making the PLUS model very user friendly.
SELECTABLE FOV FUNCTION
PaX-Duo3D PLUS provides multi-FOV sizes: 5x5, 8.5x5, 8.5x8.5 and 12x8.5, allowing users to choose a specific region of interest. The capture modes include Maxillary, Mandible, Occlusion, and TMJ, and each mode specifically supports the right, left, and center area for a precise radiographic diagnosis.
SHORT RECONSTRUCTION TIME
Reconstructed images are acquired in the shortest possible time with the EzRecon GPU algorithm (18-59 sec).
USER FRIENDLY
Featuring an easy-to-navigate LCD touch panel, laser-guided positioning and wheelchair-accessible footprint, any patient can be scanned comfortably in minimal time while achieving accurate results.
Technical Specifications
- Function: CBCT, Panoramic
- FOV Size: 5 x 5, 8.5 x 5, 8.5 x 8.5, 12 x 8.5
- Exposure Time: 15 sec / 24 sec
- Reconstruction Time: 18 / 30 sec
- Voxel Size: 0.12 mm – 0.4 mm, Changes by Field of View Size
- Dimension (WxDxH): 42.13 in x 62.99 in x 92.52 in
- Patient Position: Standing / Wheelchair Accessible
- Generator Voltage: 60 - 90 kVp
- Generator Current: 2-10 mA
- CBCT Sensor: Flat Panel Detector
- Rotating Unit Scan Angle: True 360º
