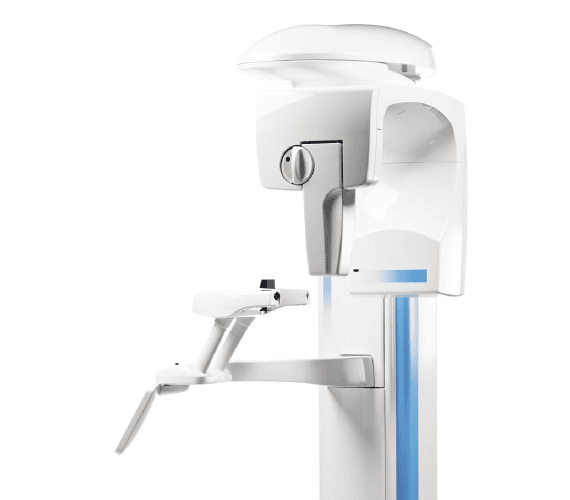

Planmeca ProMax® 2D is a complete maxillofacial imaging system. The design and operation principles are based on the latest scientific research, technological innovations and the most demanding needs of modern-day radiology.
Customize
Imagine if your X-ray system could recognize your patient’s anatomy
The unique Autofocus feature automatically positions the focal layer using a low dose scout image of the patient’s central incisors. It uses landmarks in the patient’s anatomy to calculate placement, enabling practically error-free patient positioning and dramatically reducing the need for retakes. The result is a perfect panoramic image.
Imaging programs you need
Planmeca's ProMax® 2D X-ray system offers the widest variety of imaging programs available – easily meeting all your clinical needs.
- Panoramic Imaging
- Extraoral bitewings
- Horizontal and vertical segmenting for panoramic program
- TMJ imaging
- Sinus imaging
- Child mode for reduced dose
What if you could do all your routine diagnostic imaging extraorally?
Planmeca ProMax® extraoral bitewings are ideal for any practice. They provide greater diagnostic value, less radiation, and a more comfortable experience. Additionally, our extraoral bitewings are ideal for periodontics, elderly and child patients, claustrophobic patients, patients with a strong gag reflex, and patients in pain. Extraoral bitewings enhance clinical efficiency and take less time and effort than conventional intraoral bitewing imaging.
Technical Specifications
- Generator: Constant potential, resonance mode high frequency 80–150 kHz
- X-ray tube: D-054SB-P
- Focal spot size: 0.5 x 0.5 mm (IEC 336)
- Total filtration: min. 2.5 mm Al equivalent
- Anode voltage: 50–84 kV
- Anode current: 0.5–16 mA DC
- Exposure time: Pan 2.7–16 sec, Scanning ceph 6.4–9.9 sec, ProCeph 0.1–0.8 sec, Tomo 3 sec / frame
- SID: Pan 500 mm (19 in.), Ceph 170 cm (67 in.)
- Magnification: Pan constant 1.2, Ceph 1.08–1.13
- CCD pixel size: 48 µm
- Image pixel size: 48/96/144 µm selectable
- CCD active surface: Pan 6 x 147 mm, Ceph 6 x 295 mm
- Resolution (digital): Pan max. 9 lp / mm, Ceph max. 5.7 lp / mm
- Image field (digital): Pan 14 x 30 cm (5.5 x 12 in.), Ceph 24/27 x 18/30 cm (9/10.6 x 7/11.8 in.)
- File size, uncompressed (digital): Pan 4–33 MB, Ceph 7–16 MB
- Line voltage 100–120 V, 50 or 60 Hz
- Regulation: Automatic, ±10 %
- Line current: 8–16 A
