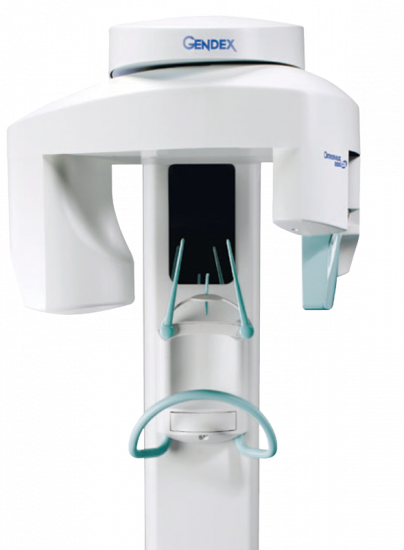

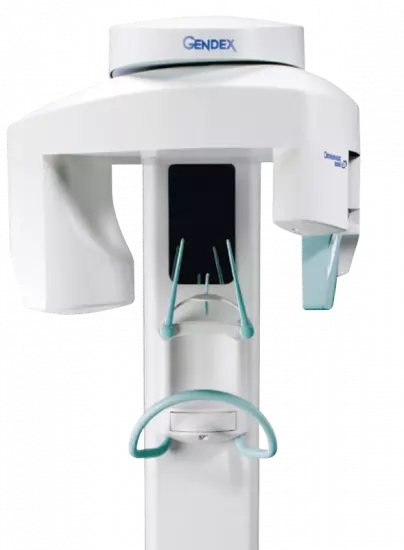

Professionals deserve in-demand features for excellent image quality. The Gendex Orthoralix 8500 DDE delivers with the latest technology — such as the ease of laser beam positioning, the precision of morphology following, multi-motorized arm rotation, and the benefits of a 0.4 mm focal spot for exceptional detail recognition.
At last, a high quality, low maintenance panoramic is no longer a dream.
Customize
Award-Winning Design
The Gendex Orthoralix 8500 sports an award-winning, modern design that links outstanding functionality and ease of use with pleasing high-tech aesthetics that simply look good in any practice. Integration into your office is a breeze. The small footprint and motorized telescopic column lets you place the 8500 where you need it — even when space is an issue.
High-End Technology
Once the patient is accurately positioned with the triple laser beam system, the Orthoralix 8500 uses multi-motorized arm rotation that allows the x-ray generator to maneuver in a sophisticated path thus producing a more precise reproduction of the entire dento-maxillofacial region. Throughout the exposure, magnification is kept constant for minimal distortion in radiographs.
Direct Digital Evolution
Featuring convenient built-in LAN connectivity, the Orthoralix 8500 DDE model hooks up to your network right out of the box without requiring a dedicated card to be installed into a PC. The panoramic film cassette is replaced by a CCD sensor that digitally captures the x-ray. This allows for instant access to images on any computer connected to the network in the practice, saving time and increasing efficiency and productivity.
Technical Specifications
- CCD Sensor Resolution: 10.4 lp / mm
- CCD Sensor Pixel Size: 48 µm
- CCD Sensor Active Area: 146 x 6 mm
- Image Resolution: 5.2 lp / mm
- Image Pixel Size: 96 µm
- Image Size: 1536 x 2725 pixels (Standard Pan)
- kV: 60 – 80 kV
- mA: 4 – 10 mA
- Focal Spot: 0.4 mm, IEC 60336 (1993)
- Exposure Time: 11 sec for the child pan, 12 sec for the standard pan
- Line Voltage: 115 V AC, 60 Hz or 250 V AC, 50 Hz
- Maximum Line Power Rating: 10 A at 250 V, 15 A at 115 V
- Weight: 254 lbs (115 kg)
