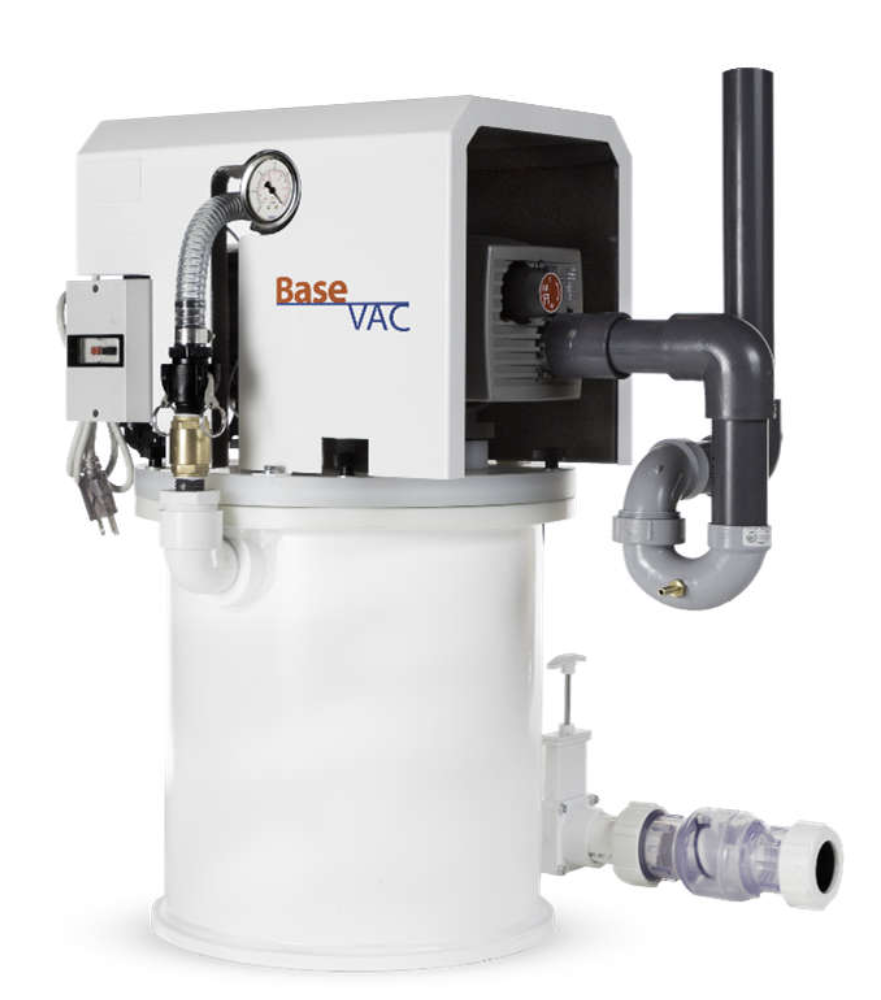

The M-Vac is an affordable powerhouse that packs the entire BaseVac experience into a compact integrated platform. It's designed to be the perfect plug & play replacement for wet ring pumps in smaller clinics. All you need to do is install it, set it, and forget it.
$10,946.25
Customize
Product Details
Ratings & Reviews
Product Details
Product Details
Reasons to Believe:
- At only 30" tall and 17" wide it keeps a low profile without sacrificing functionality.
- The same industry leading vacuum capacity found on our large scale custom systems.
- Dependable, efficient, and quiet rotary vane technology.
- Easy service access.
- Remote start & stop capabilities available on 2M models.
Additional Details:
- Remote start capability built in for 2M series - remote switch not included.
- Exhaust Kit includes piping from pump with P-Trap, drain and 23 inches schedule 80 1 ¼ inch pipe. Inlet Kit includes hose and fittings from air water separator to vacuum pump.
- As with all dry vac suction systems a drip leg is recommended on the exhaust line to prevent condensate return to the pump and is included with all systems.
TECHNICAL SPECIFICATIONS
- Max (HV) Users: 1.5
- Operatories: 2
- HP: 0.94
- Amps: 5.2
- Volts: 220V, 1 Phase
- dB: 65

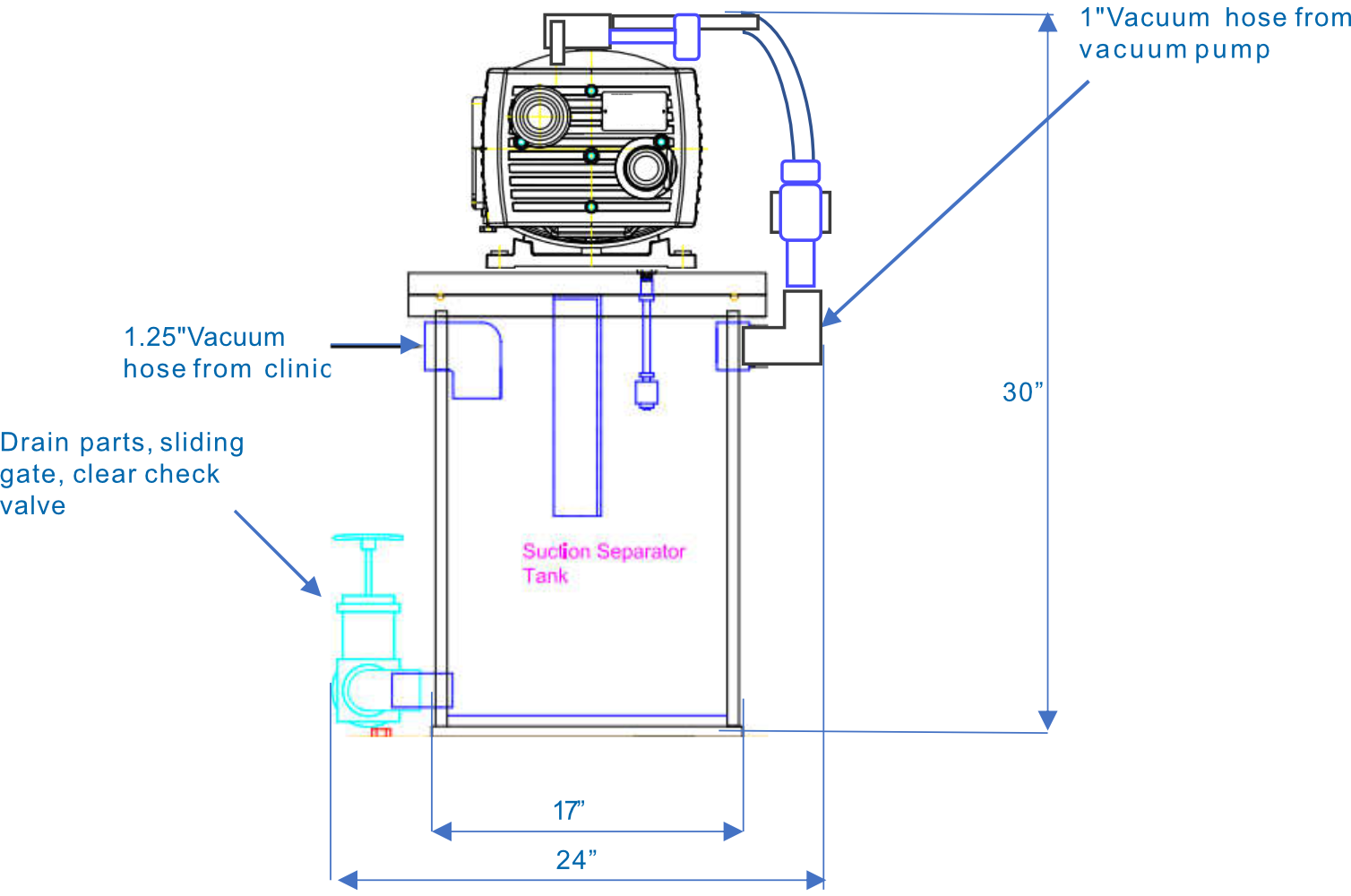

- Dimensions: 17" x 17" x 30"
- Weight: 86 Lbs
- Air / Water Separator: Built-In
- Inlet: 1.5" Hose Barb
- Outlet: 1.5" Plastic Pipe
