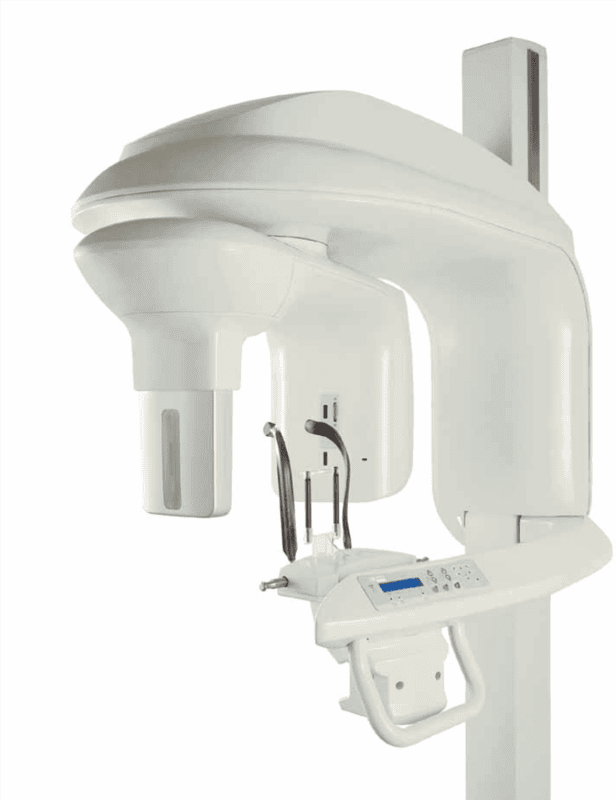

Today’s practitioner requires diagnostic tools that are complete and effective. This was the inspiration in creating the CS 9000 system, the answer to the diagnostic needs of dentists, endodontists, periodontists, orthodontists, and maxillo-facial surgeons alike.
With the ability to blend three technologies into one, the CS 9000 system is the multi-faceted solution to fit all practitioners’ needs. It’s the ideal and complete diagnostic tool that incorporates cutting-edge panoramic, cephalometric and 3D imaging.
Customize
With the CS 9000 system, technology and innovation do not come at the expense of ease of use. A user-friendly design, dedicated application sensors are all aspects of a system that has been conceived to help improve comfort and effectiveness. The easy to use software platform is perfect for 2D and 3D images.
The technologies employed are designed to deliver maximum image quality. The unit features a high frequency generator, an adjustable focal trough, “one shot” cephalometric capability, and ultra-high resolution 3D imaging. In other words, in each mode, high-end technology yields optimized results and security
Technical Specifications
3D Modality
- Technology: Digital Volumetric Tomography (DVT)
- Sensor technology: CMOS sensor with optical fibre
- Gray scale: 16 bits
- Volume size: 50 x 37 mm
- Voxel size (μm): 76 x76 x 76 (isotropic voxel)
- Reconstruction time: Depends on the PC, typically under 2 minutes with high performance PC
Panoramic Modality
- Sensor technology: CCD - Optical fibre sensor
- Gray scale: 16384 (14 bits)
- Magnification: 1.27
- Exposure time: Depending on program selection. From 4 sec. to 16 sec.
Standard Adult: 13.9sec., Standard pediatric: 13.2 sec. - Programs: 12 anatomical settings
- Radiological exam options:
- Panoramic
- Segmented Panoramic
- Maxillary sinus
- LA TMJ x2
- LA TMJ x4
- Input voltage: 230-240V - 50 / 60 HZ, 100-110-130V - 50 / 60 Hz
Cephalometric Modality
- Technology: One shot
- Sensor technology: CCD - Optical fibre sensor
- Gray scale: 16384 (14 bits)
- Magnification: 1.14
- Exposure time: Standard: under 1 sec., User selectable range: 0.1 - 3.2 sec.
- Cephalometric exam options:
- Lateral
- Oblique
- Frontal (AP / PA)
- Submento-vertex
- Carpus
- Cephalometric formats: 18 x 18 cm - 18 x 24 cm - 24 x 24 cm - 24 x 30 cm - 30 x 30 cm
X-Ray Generator and Other Specifications
- Tube voltage: 60 - 90 kV(max), pulsed mode for 3D modality
- Tube current 2 - 15 mA (max)
- Frequency: 140 kHz (max)
- Tube focal spot: 0.5 mm (IEC 336)
- Total filtration: >2.5 mm eq. Al
- Weight: CS 9000 / 9000 3D: 160 kg (353 lb.), CS 9000C / 9000C 3D: 199 kg (439 lb)
