100% Oil & Water Free
Save on water costs. No oil changes or oily exhaust residue.
Industry Leading Suction Performance
Adjustable vacuum up to 25” Hg for surgical and multi-specialty applications.
Works with 1” Diameter or Smaller Pipes
Easily replace old wet vacuum systems without replacing in-floor plumbing.
Modular & Upgradable
Add new motor units and tank extensions to support up to 16 users.
$23,155.00
Customize
Product Details
Ratings & Reviews
Product Details
Product Details

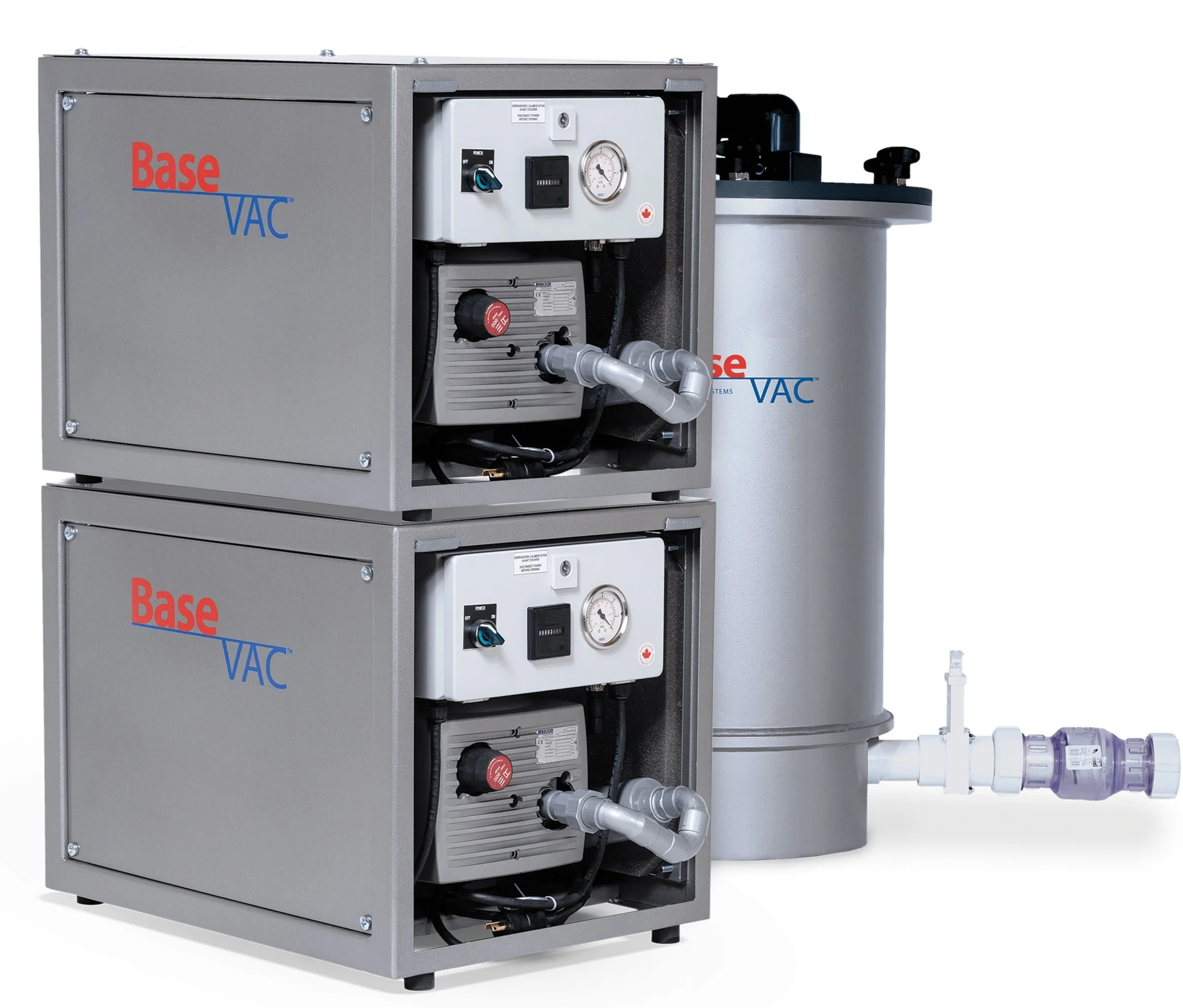

2HD-Series Packages Include:
- Two 100% Dry Vacuum Units
- Improved 12-Gal Air/Water Separator Tank with Auto-Drain & Over-Flow Protection. Includes Extra Float Sensor for Easy Upgrades
- NEMA-Rated Control Panel with Vacuum Gauge, Hour Meter and Start/Stop Control
- Remote Start Capability with Optional Remote Switch
- Exhaust Kit With Dual Drip-Leg Assembly
- Adjustable Bypass Vacuum Regulator with Industry-Leading Suction Range of 10-25” In Hg
- Optional 3 Phase 230 / 460 / 575 - 220v single phase models include a buck boost with each pump to adjust voltage to 220 volts +/- 5 volts
TECHNICAL SPECIFICATIONS
- Max Users: 8
- Suction Power (Hg): 10-25" Hg
- HP: 4
- Amps: 10.5
- Voltage: 230V, 1 Phase (207-253V)
- dB: 72
- Dimensions: 16.5" x 16.5" x 31.5"
- Weight: 260 Lbs
