Pneumatic stations for dental turbines Extremely simple and robust in design, these Bien-Air pneumatic systems have become the tools of choice for ceramic and prosthetic specialists worldwide. In particular, they incorporate TD turbines which are celebrated as the best in their class.
Customize
With a rotation speed of 300,000 rpm, they prove ideal for delicate, precise work. They work marvelously for machining crevices on occlusal surfaces, on ceramic and zirconia. The station precisely controls and adjusts the pressure of the turbine and is equipped with an on/off control, operated by foot pedal. The foot pedal also controls the operation of the TDS 890 turbine spray. A unique dust shield contributes to its long service life.

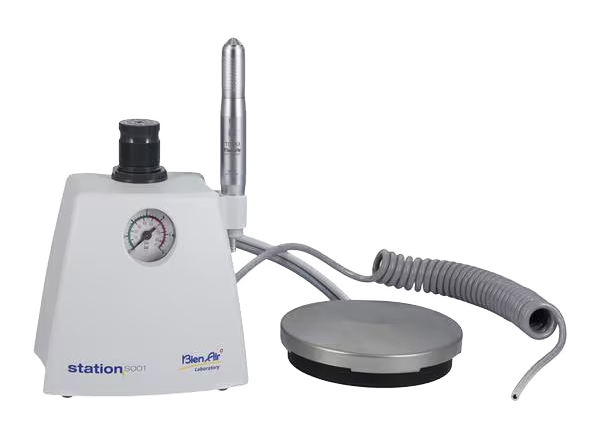

Simple and efficient controls, fitted with the TD 783 straight turbine. A choice of two versions, the S001 table model, stable yet compact, or the SF 811 wall or table-leg mounted unit, for extra working space.
- Turbine speed up to 300,000 rpm
- Turbine ideal for delicate, precise work
- Pedal to adjust turbine speed
- Straight hose in grey silicone, internal Ø 1/8"
- Reliability under all conditions
TECHNICAL SPECIFICATIONS
- Type: Pneumatic module, tabletop model
- Max air pressure: 250 kPa - 300 kPa
- Max spray: 120 mL/min
- Pedal: Pneumatic
- Dimensions (L x H x D): 110 x 135 x 162 mm
- Safety: In conformity with EC directive 98/37/EC
- TD 783 turbine type: Ball-bearing turbine protected by a special dustproof shield
- Speed of rotation (rpm): 300,000
- Air flow: 35 liters/min. on average
- Bur changing mechanism: Friction Grip (FG)
- Burs: Bur ø 1.60 mm as per ISO 1797 - type 3
- Hose: Grey straight silicone, with 4-hole coupling
- Weight (g): 60
- Cleaning: With Bien-Air Spraynet®
- Lubrication: With Bien-Air Lubrimed® grease
